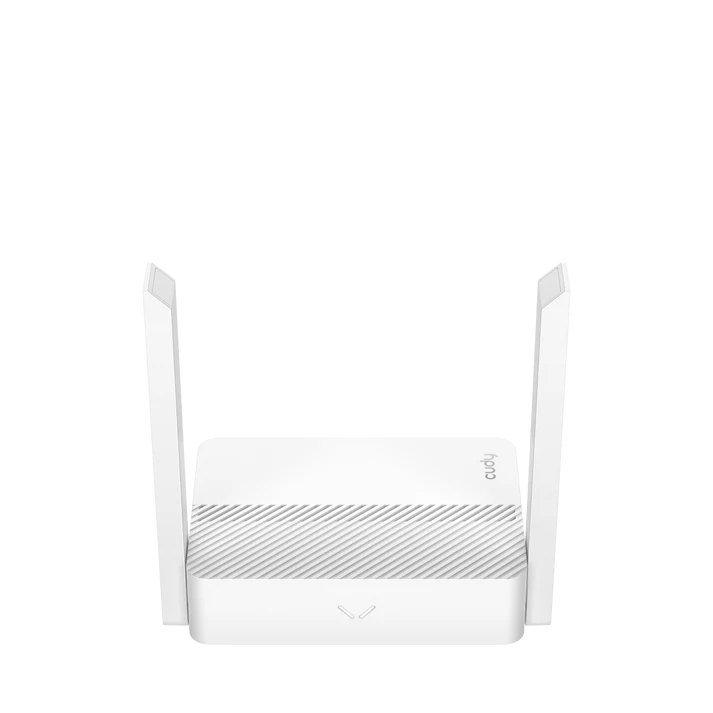

CUDY WR300 300 Mbps N300 Multi-Mode Wi-Fi Router with 4 Fast Ethernet Ports
CUDY WR300 300 Mbps N300 Multi-Mode Wi-Fi Router with 4 Fast Ethernet Ports
SPECIFICATIONS:
| Model Version | |
|---|---|
| WR300 1.0 | |
| CPU | |
| Chipset | MT7628 |
| CPU Details | 580 MHz Single-Core, MIPS24KEC |
| Memory/Storage | |
| Flash/ROM | 8 MB (64 Mbit ) NOR |
| DDR/RAM | 64 MB (512 Mbit) DDR2 |
| Wireless | |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2× Fixed |
| Range Performance | Max: 130 m (427 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
| Wall Performance | One wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 10 cm (4”) |
| Interfaces | |
| 10/100 Mbps RJ45 Ports | 4 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports |
| LED | System |
| Physical Buttons |
|
| Power Input | DC Jack |
| Power | |
| Power Methods | DC |
| DC | 5V 1A |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 5V 1A DC |
| Reliability | |
| Environment |
|
| Certifications | |
| FCC, CE | |
| Mechanical | |
| Installation | Desktop |
| Dimension | 118×80×27.5 mm 4.65×3.15×1.08 inches |
| Product Weight | 120 g (4.23 oz.) |
| Package Content | |
| |
| Ordering Information | |
| Retail Package Weight | EU: 336 g (11.85 oz.) |
| Retail Package Dimension | 176×140.5×56 mm 6.93×5.53×2.2 inches |
| Units per Carton | 40 |
| Carton Dimension | 60×30×37.5 cm 23.62×11.81×14.76 inches |
| Carton Gross Weight | EU: 14.4 kg (31.75 lbs) |
| Carton Net Weight | EU: 13.4 kg (29.54 lbs) |
| Wireless | |
|---|---|
| Wi-Fi Standards | Wi-Fi 4 |
| Max Wi-Fi Modulation | 64-QAM |
| Max Capacity | 64 |
| Recommended Client Upper Limit | 30 |
| Max Wi-Fi Channel Width | 40 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz |
| WPS | True |
| Operation Modes |
|
Perfect for a 100 Mbps Broadband
Shares with Wired Devices Flawlessly
One WAN port plus three LAN ports let you connect multiple devices via stable Ethernet cable without needing another network switch.
Connects 30 Devices Wirelessly
Enjoy high-speed WiFi together when your friends come with ample WiFi capacity. 2×2 MIMO enables devices to use both antennas to improve the experience.
No matter whether you want to connect to a public network expand a trusted network, or even use it as a Wi-Fi adapter (client) for your wired devices. It adapts to multiple scenarios like a breeze.
Easy Setup and Versatile Management
Easy to Use
An intuitive setup wizard guides you to config your new network.
Wi-Fi Schedule
Set a bedtime and a domain blacklist to regulate your children’s online behaviour.
WireGuard VPN Client
Allows you to connect multiple devices at once to your private or commercial VPN.
Cudy Mesh Satellite
Works as a Mesh node with other Cudy Mesh device to enable fast roaming when moving between Wi-Fi zones.
