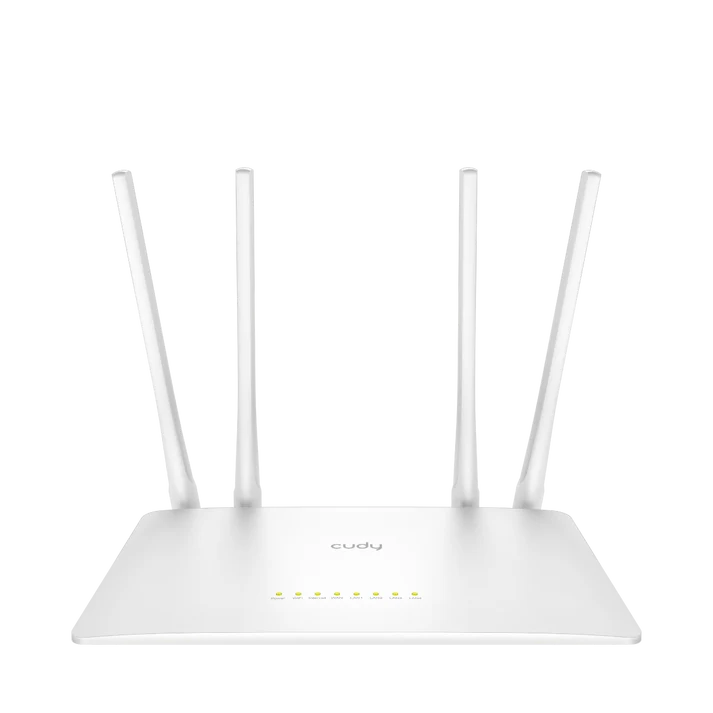

CUDY WR1200 AC1200 4-Stream Dual-Band WiFi Router, Extender Wireless, Access Point
Sale price
$16.00
Regular price
$20.00
CUDY WR1200 AC1200 4-Stream Dual-Band WiFi Router, Extender Wireless, Access Point
SPECIFICATIONS:
| Model Version | |
|---|---|
| WR1200 2.0 | |
| CPU | |
| Chipset | MT7628 |
| CPU Details | 580 MHz Single-Core, MIPS24KEC |
| Memory/Storage | |
| Flash/ROM | 8 MB (64 Mbit ) NOR |
| DDR/RAM | 64 MB (512 Mbit) DDR2 |
| Wireless | |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 4× Fixed |
| Beamforming | True |
| Range Performance | Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
| Wall Performance | One wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) |
| Interfaces | |
| 10/100 Mbps RJ45 Ports | 5 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports |
| LED |
|
| Physical Buttons |
|
| Power Input | DC Jack |
| Power | |
| Power Methods | DC |
| DC | 12V 1A |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC |
| Reliability | |
| Environment |
|
| Certifications | |
| FCC, CE | |
| Mechanical | |
| Installation |
|
| Dimension | 220×135×30 mm 8.66×5.31×1.18 inches |
| Product Weight | 259 g (9.14 oz.) |
| Package Content | |
| |
| Ordering Information | |
| Retail Package Weight | EU: 651 g (22.96 oz.) |
| Retail Package Dimension | 290×250×64 mm 11.42×9.84×2.52 inches |
| Units per Carton | 16 |
| Carton Dimension | 53.8×51.6×31.3 cm 21.18×20.31×12.32 inches |
| Carton Gross Weight | EU: 11.9 kg (26.23 lbs) |
| Carton Net Weight | EU: 10.4 kg (22.93 lbs) |
| Wireless | |
|---|---|
| Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM |
| Wi-Fi Efficiency | MU-MIMO |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz |
| Max Capacity | 128 |
| Recommended Client Upper Limit | 40 |
| Max Wi-Fi Channel Width | 80 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| WPS | True |
SKU: WR1200-EU
