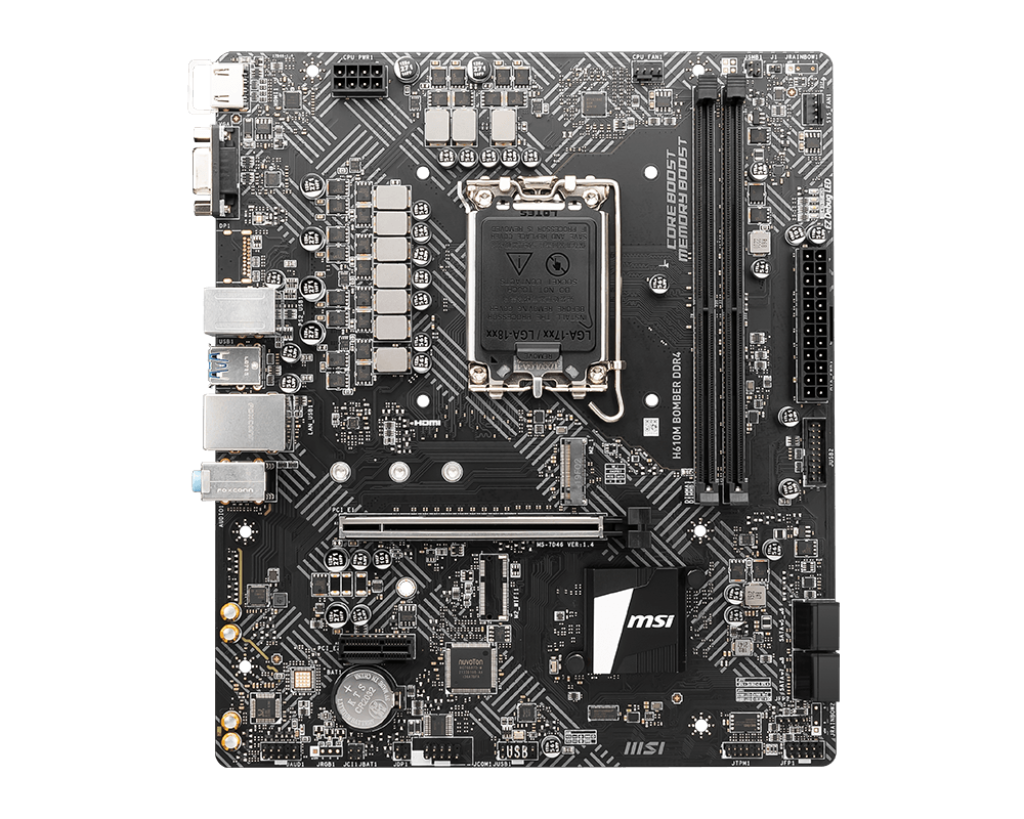

MSI H610M BOMBER DDR4 Motherboard

SPECIFICATIONS:

Model Name:

H610M BOMBER DDR4

CPU Support:

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

CPU Socket:

LGA 1700

Chipset:

Intel® H610 Chipset

Graphics Interface:

1x PCIe 4.0 x16 slot

Display Interface:

Support 4K@60Hz as specified in HDMI™ 2.1, VGA – Requires Processor Graphics

Memory Support:

2 DIMMs, Dual Channel DDR4-3200MHz (MAX)

Expansion Slots:

1x PCIe 3.0 x1 slot

Storage:

1x M.2 Gen3 x4 32Gbps slot,
4x SATA 6Gbps ports

USB ports:

4x USB 3.2 Gen 1 5Gbps (4 Type-A),
6x USB 2.0

LAN:

Intel® I219-V 1G LAN

Audio:

8-Channel (7.1) HD Audio with Audio Boost

FEATURES:

• Lightning Gen4 Solution:

  The Gen4 PCI-E solution with up to 64GB/s bandwidth for
  maximum transfer speed.

• Memory Boost:

  Advanced technology to deliver pure data signals for the best
  performance, stability and compatibility.

• PCI-E Steel Armor:

  Protecting VGA cards against bending and EMI.

• Frozr AI Cooling:

  Detect CPU & GPU temperatures and automatically adjust system
  fan duty to a proper value.

• Core Boost:

  With premium layout and fully digital power design to support
  more cores and provide better performance.

• Audio Boost:

  Reward your ears with studio grade sound quality for the most
  immersive audio experience.

• EZ Debug LED:

  Easiest way to troubleshoot.

LINK:H610M BOMBER DDR4 Motherboard M-ATX – Intel 12th Gen Processors
